24v 350Watt Motor and controller For Electric Bike kit MY1016Z3 for e-bikes and other users at the lowest prices online. It delivers a Recommended output and transmission way for friction press wheel and has applications including electric scooters and Small Electric motorcycles along with e-bikes. This is a 24-volt 350-watt gear reduction motor compatible with a 9 tooth 1/8″ bicycle chain sprocket. The motor is great for those wanting to make their own custom electric vehicle a, whether it’s a scooter or electric bicycle. This electric motor with gear reduction produces more low-end torque than any standard motor.
This 24v 250 W Motor For Electric Bike kit full-fledge combination of motor and controller is great for those wanting to make their own custom electric vehicle, whether it’s a scooter or electric bicycle. This electric motor with gear reduction produces more low-end torque than any standard motor. Also due to its robustness, it is also used in many so many projects making segway, e-cars, and in many robotics like ATV robots and combat robots.
24v 350Watt Motor and controller Specification:
| Voltage |
24V
|
|---|---|
| Wattage |
350W
|
| Rotation |
2650 RPM
|
| Torque |
2.5 n.m to 6.2 n.m
|
| Efficiency |
>75%
|
| Dimension (Width x Length) |
101*69
|
| No Load RPM |
3850
|
| No Load Current |
<2.2 Amps
|
| Rated Load RPM |
400
|
| Torque (NM) |
22
|
| Rated Current |
18 Amps
|
| Efficiency |
78%
|
| Reduction Ratio |
9.78:1
|
| Sprocket |
9 Tooth Sprocket for 1/2 ” x 1/8″ Pitch Chain
|
Comparable battery pack;

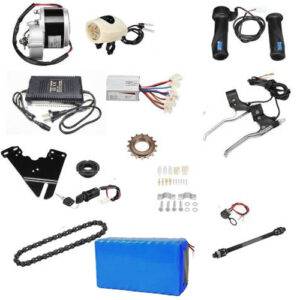

Package Contains:
1. 1pcs x DC 24V 350W motor. (NOTE: two type motors available with stand and without stand You will get whatever motor is available.)
2. 1pcs x Motor controller.
3. 1pcs x Throttle handle
