60V 1500W Hub motor Kit 10Inch with disc Brake
A hub drive motor is the most common type of motor you’ll see on cheaper E-bikes, with the motor integrated into the front or rear wheel.
The latter is more common, but a few e-bikes even have motors on both wheels. A hub drive directly applies torque to the wheel, operating independently of your bike’s gears. e-bike hub motor or mid-drive motor is a BLDC motor. that can’t run on DC directly, it needs a controller. The controller takes the DC and converts it into a variable frequency 3 phase AC
A hub motor commonly is planned in one of three arrangements. Considered least down to earth is a hub motion engine, where the stator windings are commonly sandwiched between sets of magnets. The other two arrangements are both radial designs with the motor magnets bonded to the rotor; in one, the inner rotation motor, the rotor sits inside the stator, as in a conventional motor. In the other, the outer-rotation motor, the rotor sits outside the stator and rotates around it. The application of hub motors in vehicular uses is still evolving, and neither configuration has become standard

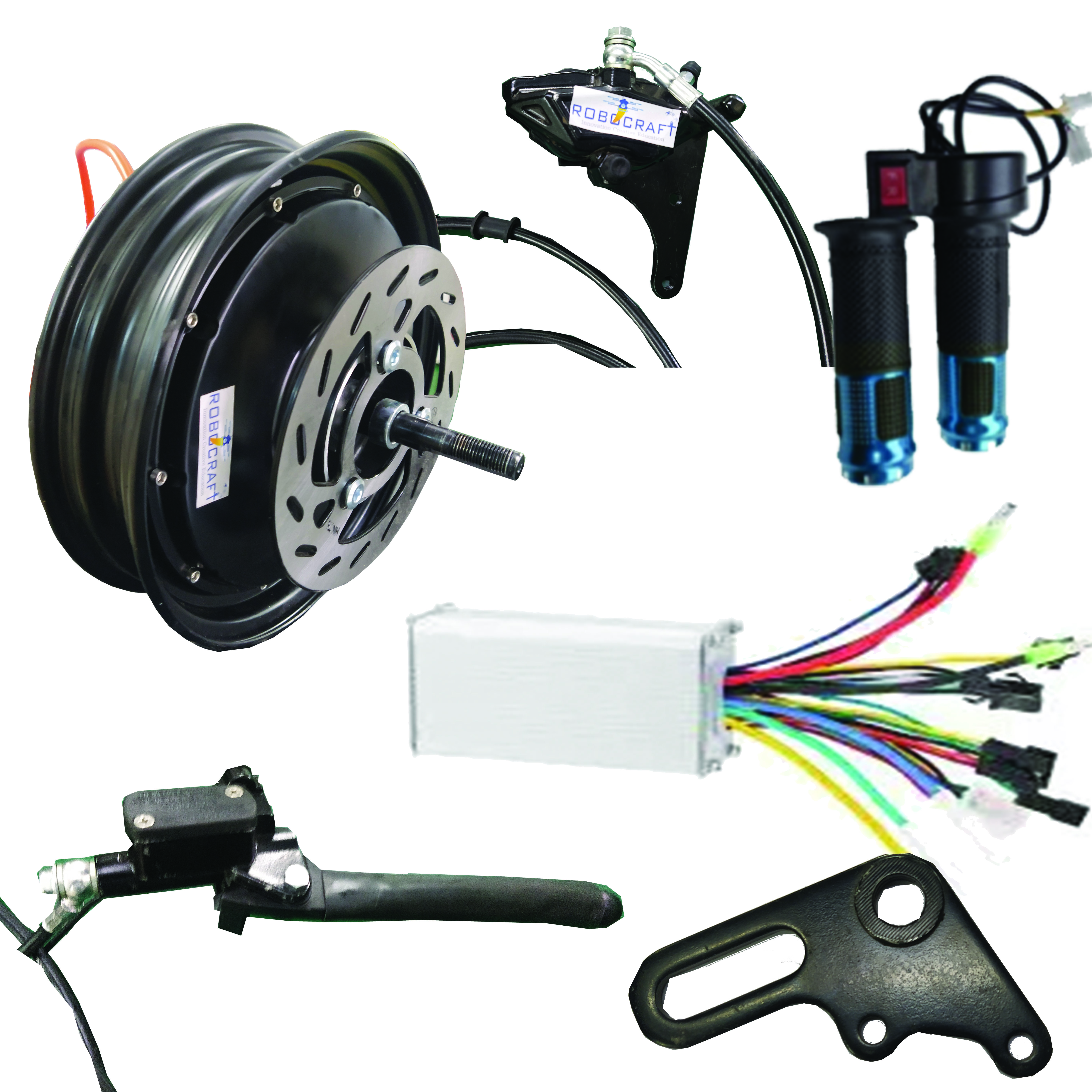

This is a Hub Motor Scooter Kit 60V 1500W Hub motor Kit 10Inch with disc Brake. This kit is very easy to mount on your 2 wheels like Activa, Jupiter, access, etc. This kit is especially Desing for Activa conversion Kit
Hub Motor Scooter Kit 60V 1500W 10 Inch Specification:
- 60V 1500W ( WATERPROOF ) PURE COPPER WINDING RPM 650 approx WEIGHT APPROX 8.8 KG SILENT AND SMOOTH with disc brake
- THROTTLE with REVERSE SWITCH
- RIM size 10 inch
- rated torque: 25 – 45 newton meter
- SPEED 55-60 KM/H*
- LOADING CAPACITY ( 450KG )
- brake Type: disc brake
package includes
- 60V 1500W hub motor 1x
- 60V 1500W controller 1x
- disc Brake 1x
- disc brake caliper 1x
- disc brake caliper mount 1x
- brake 1x
