ACS712 Current Sensor Module 20A

Availability:

9 in stock


117 189 Inc GST

9 in stock

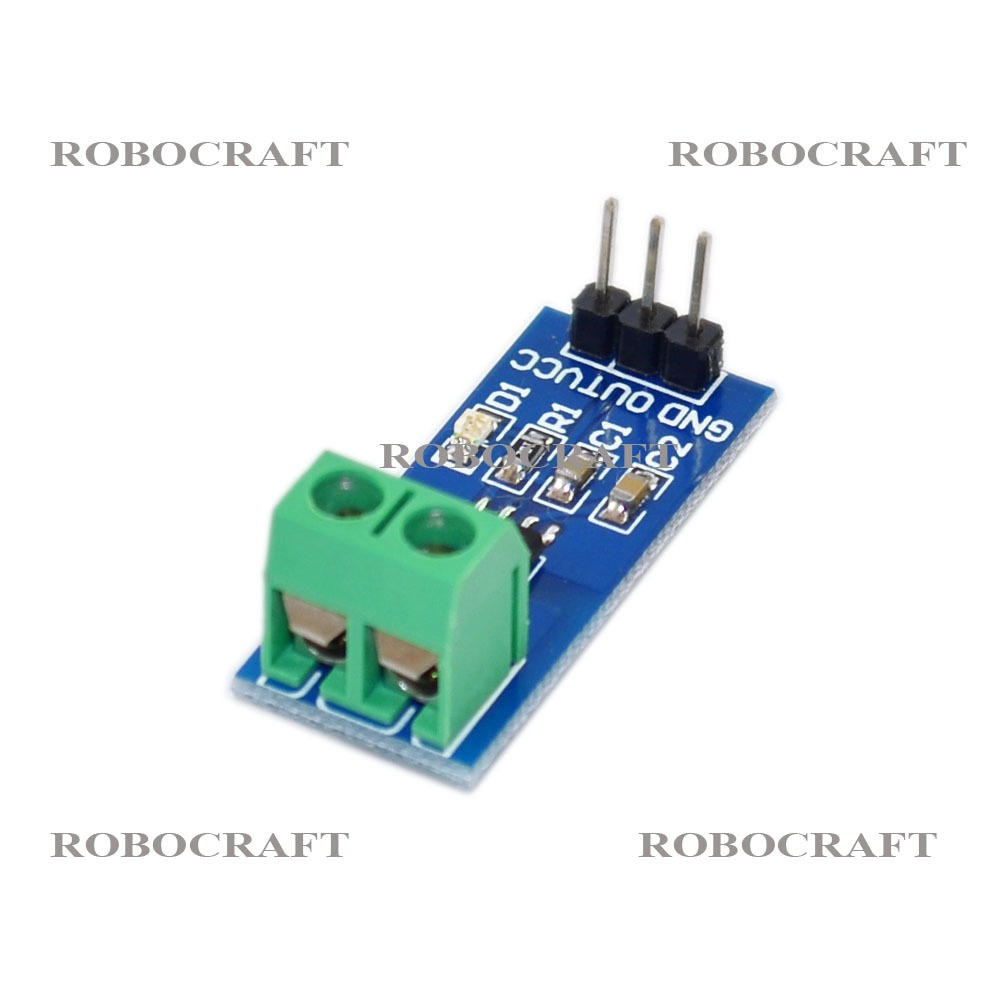

This current sensor board is based on the ACS712ELCTR-20A bi-directional hall-effect current sensor chip that detects positive and negative flowing currents in the range of minus 20 Amps to positive 20 Amps. The board operates at 5V DC and the current flow through the sensor is converted to an output voltage starting at 1/2Vcc (or 2.5V) for no current flow and moves up 100mV per amp for positive current or down -100mV per amp for negative current.

For example:
The output voltage at +2 amps would be (2.5V + (0.1 * 2)) = 2.7 V
The output voltage at -5 amps would be (2.5V – (0.1 * 5)) = 2.0 V

Specification

  • Supply Voltage: 4.5V~5.5V DC
  • Measure Current Range: -20A~ 20A
  • Sensitivity: 180mV/A ~190mV/A, Typical: 185mV/A



Package including:

  • 1X ACS712 Current Sensor Module 20A
