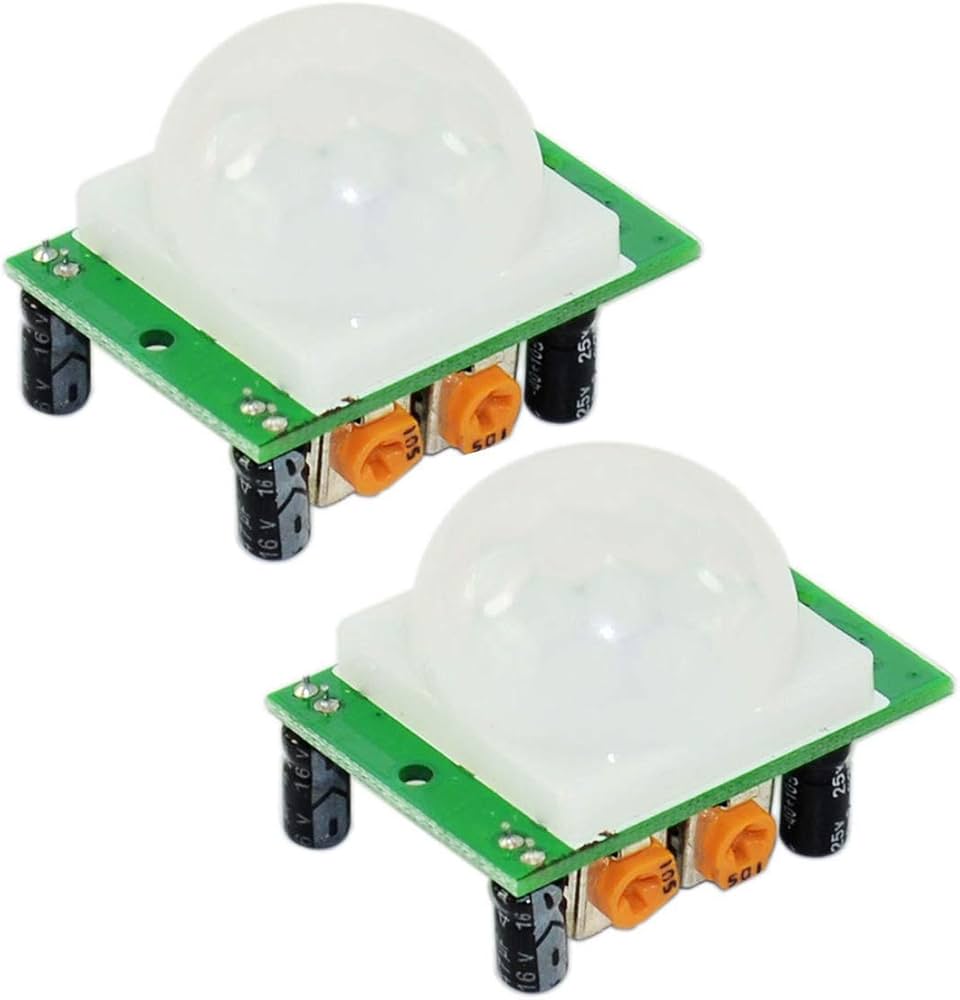

Product Description: Human Motion Sensor Module
- Sensor Type: Passive Infrared (PIR) motion sensor.
- Detection Range: Typically detects motion within a range of 3 to 7 meters.
- Field of View: Wide detection angle, usually around 100 to 120 degrees.
- Operating Voltage: Operates at a low voltage, commonly 3.3V or 5V.
- Output: Digital output signal indicating motion detection (HIGH when motion is detected, LOW otherwise).
- Pins: Three pins – VCC (power), GND (ground), and OUT (signal output).
- Sensitivity Adjustment: Some models allow for sensitivity adjustment via onboard potentiometers (not visible in the image).
- Delay Time Adjustment: Adjustable delay time (duration of the HIGH signal) via onboard potentiometers .
- Applications: Ideal for use in security systems, automatic lighting control, motion-activated alarms, and DIY electronics projects.
- Compact Design: Small and lightweight, easy to integrate into various projects.
- Power Consumption: Low power consumption, making it suitable for battery-powered applications.
- Mounting: Easy to mount on PCBs or in enclosures.
Features
- Reliable Motion Detection: Accurate detection of human movement using infrared radiation.
- Plug-and-Play: Simple to use with minimal setup required.
- Compatibility: Compatible with various microcontrollers and development platforms, including Arduino, Raspberry Pi, and ESP8266.
- Durability: Robust design to withstand various environmental conditions.
Applications
- Security Systems: Motion detection for triggering alarms or notifications.
- Automatic Lighting: Turn lights on/off based on detected movement.
- Energy Saving: Reduce power consumption by activating devices only when motion is detected.
- DIY Projects: Ideal for hobbyists and makers building interactive projects.
This human motion sensor module is an excellent choice for enhancing the functionality of your electronic projects with motion detection capabilities.
PACKAGE INCLUDE
1 X Human Motion Sensor Module
