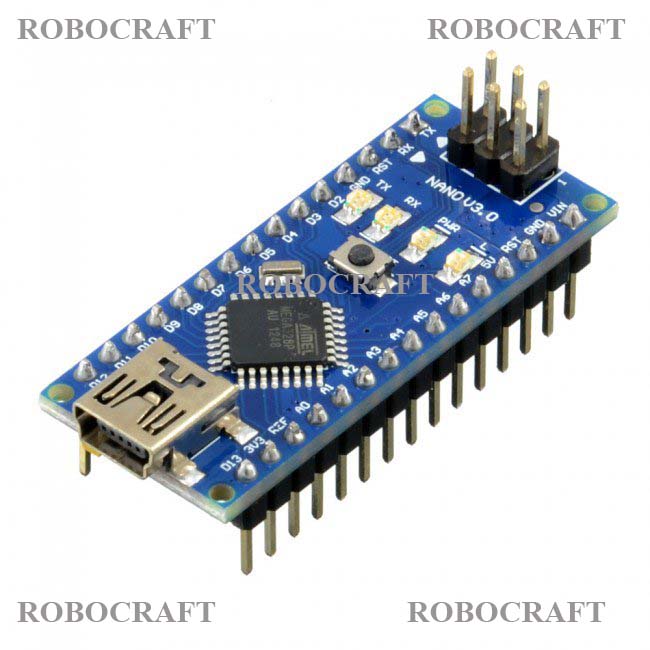

Arduino Nano Board R3 CH340 chip With USB Mini Cable chipboard is based on the Arduino platform and does all the functions of Uno, but with a smaller.
Arduino Nano Board R3 CH340 chip USB Mini Cable is vital for your small project where you don’t need much of a pin-outs but the small size is very important to make it look good. an Arduino Nano equips a low-cost USB-Serial Chip that makes it less in price than Arduino Nano with FTDI USB-Serial Chip used on older versions of Nano. a Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano R3). It has more or less the same functionality as the Uno but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one. an Arduino Nano Arduino can be power via the mini-USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected for the highest voltage source.
The size of Arduino Nano V3.0 with CH340 Chip is only 43 mm x 18 mm; it comes with 6 PWM I/O from the total of 14 digitals I/O, 8 analog inputs, 16Mhz clock speed and 32kB of flash memory.
