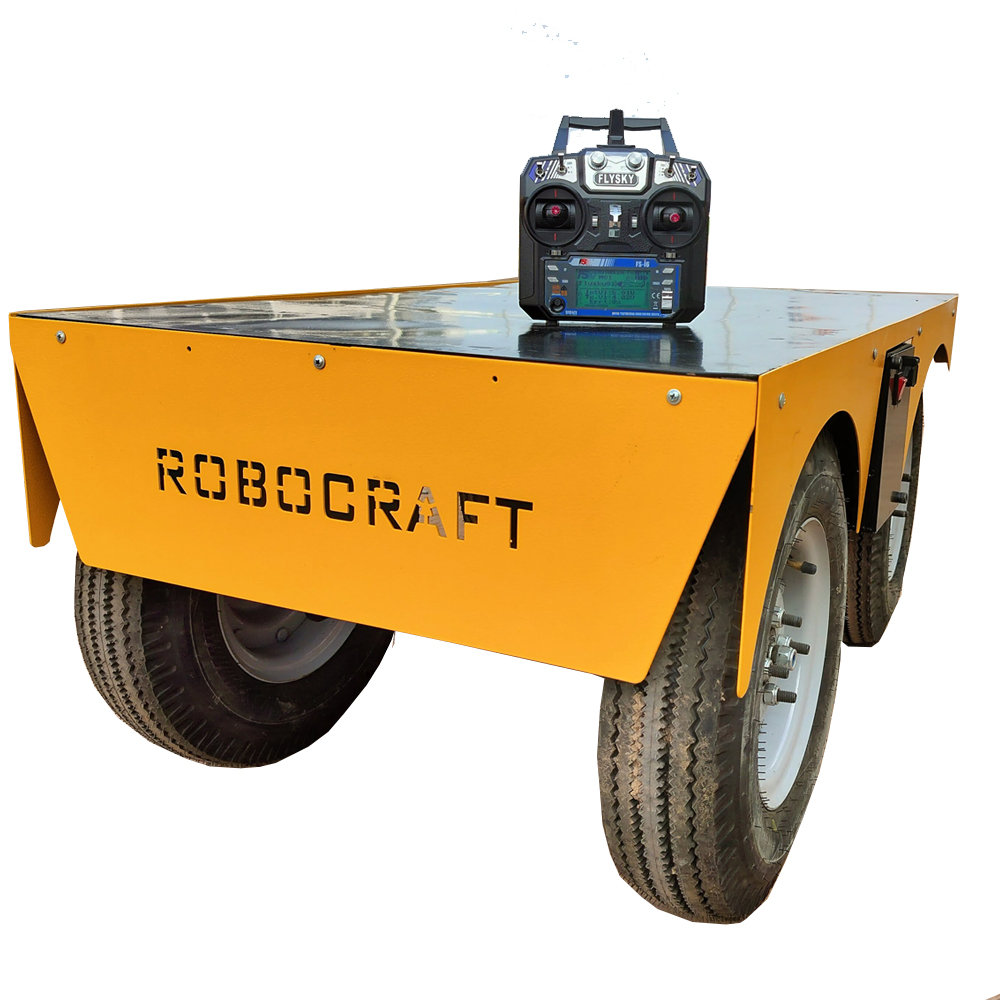

Remote-Controlled Heavy-Duty Transport Robot – Up to 500 KG Payload
Model: RC-T500 | Brand: ROBOCRAFT
Remote-Controlled Heavy-Duty Transport Robot – Up to 500 KG Payload Take your industrial logistics to the next level with the ROBOCRAFT RC-T500 – a rugged, remote-controlled robot designed for heavy payloads up to 500 kg with 360° maneuverability. Built for indoor and outdoor use, this smart mobility platform is ready for customization and automation.
a heavy-duty, customizable robot transport platform built for industrial-grade performance. Designed to carry payloads up to 500 kg, this remote-controlled mobile vehicle is ideal for factories, farms, warehouses, and off-road logistics. With a 360-degree turning capability, it offers unmatched maneuverability in tight spaces, while its rugged construction ensures reliable performance on uneven terrain.
Whether you’re moving tools across a construction site, transporting agricultural materials in the field, or handling packages inside a warehouse, this robot is your powerful and efficient assistant.
Key Features at a Glance:
-
🚛 Payload Capacity: Supports up to 500 kg of cargo with ease
-
🔄 360° Rotation: Zero-radius turning for indoor and outdoor use
-
🧲 MS Frame: Made with high-grade, powder-coated MS for durability
-
🎮 Remote Control: Operated with a FLYSKY 2.4GHz 6-channel transmitter
-
🛞 All-Terrain Mobility: Pneumatic wheels provide stable traction on all surfaces
-
⚡ Motor Power: Dual 24V high-torque geared motors (20A continuous / 60A peak)
-
🔋 Battery Options: Comes with a 24V 30Ah lithium-ion battery (customizable up to 48V)
-
📐 Platform Size: Standard 1000×800 mm (can be customized to project needs)
-
⚙️ Speed: Adjustable up to 5 km/h with smooth throttle control
-
⏱ Runtime: Operates for 3–5 hours per charge depending on load and terrain
-
🔌 Charging: Smart BMS-enabled lithium battery charger included
| Feature | Specification |
|---|---|
| Load Capacity | Up to 500 KG |
| Chassis Material | Heavy-duty powder-coated steel |
| Drive System | 4-Wheel Drive with Differential Steering |
| Rotation | 360° On-Spot Turning (Zero Radius Turning) |
| Tires | Pneumatic tires for all-terrain movement |
| Control Type | FLYSKY Remote Control (2.4GHz, 6 Channel) |
| Operating Range | Up to 100 meters (line-of-sight) |
| Motor Type | Dual DC Geared Motors (24V, 20A each) |
| Battery | 24V/30Ah Lithium-ion Battery (customizable) |
| Frame Size | Customizable dimensions (Default: 1000 x 800 mm) |
| Speed | 0–5 km/h (variable speed control) |
| Charging Time | 3–4 Hours (Smart BMS supported) |
| Runtime | 3–5 hours (depending on load & terrain) |
Future-Ready Add-On Options (Autonomous Upgrade):
You can upgrade this robot platform for Heavy-Duty Autonomous Robot with the following modular features:
-
📡 GPS Navigation (Real-time location tracking)
-
🚧 LiDAR-Based Obstacle Avoidance
-
🧭 IMU + Compass for orientation
-
🧠 Raspberry Pi / Arduino-Based Control
-
🌐 Wi-Fi / 4G Remote Dashboard Integration
-
📷 Camera Vision System (FPV / Night Vision)
-
📦 Payload Sensor + Smart Lock Mechanism
🔧 Applications:
-
📦 Warehouse Material Handling
-
🚜 Agriculture Transport Cart
-
🏗️ Construction Site Equipment Carrier
-
🚔 Surveillance & Patrolling Robot
-
🔧 Industrial Inspection Bot
📲 Customization & Support:
We provide full customization, including:
-
Battery packs (capacity & voltage)
-
Body dimensions & materials
-
Control logic (manual/semi-autonomous/autonomous)
-
Integration with your existing IoT or cloud system
