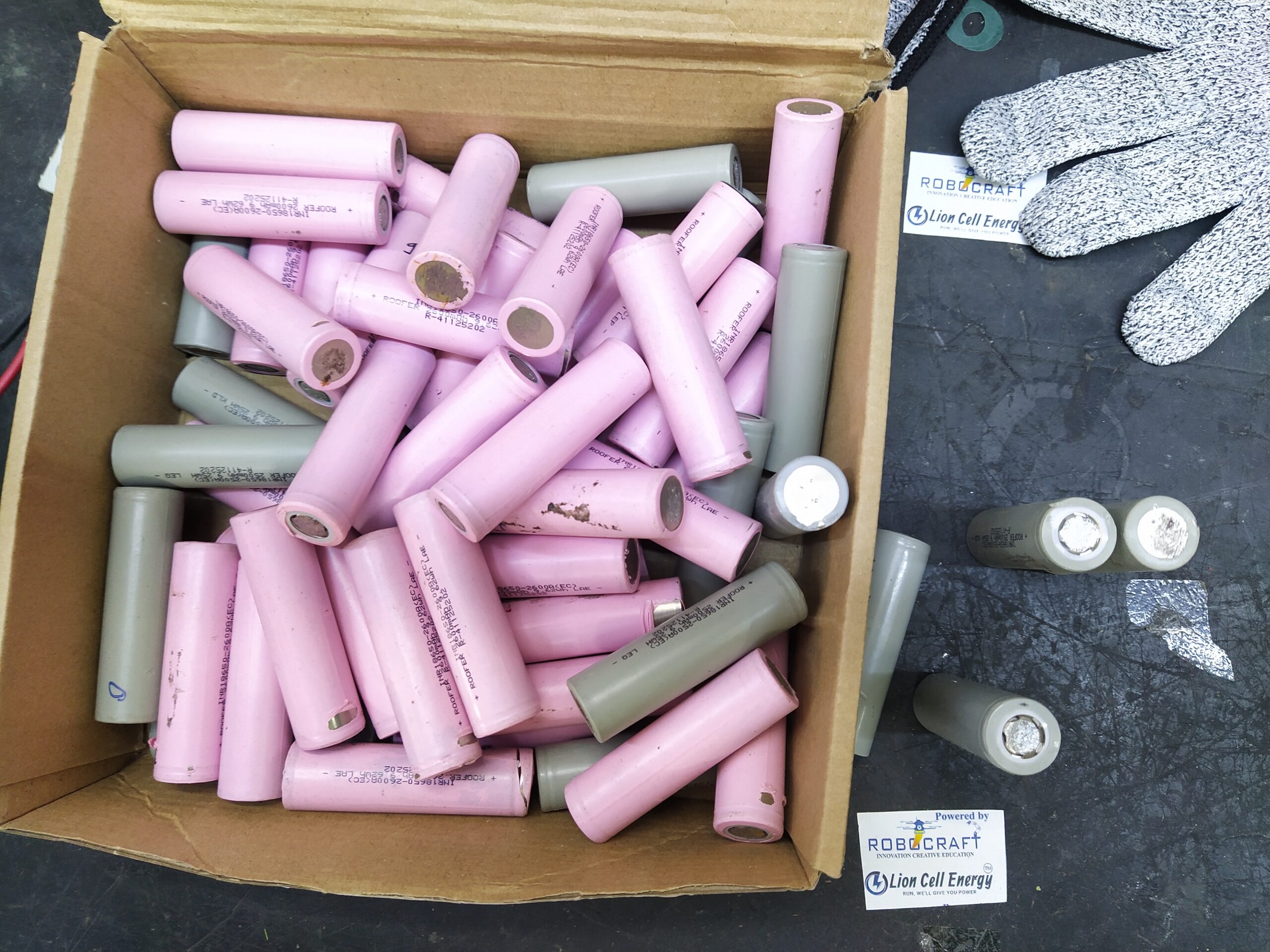

Li-ion Battery Scrap Recycling in India Leave a comment

Li-ion (Lithium-ion) battery scrap refers to damaged, end-of-life, or manufacturing-rejected lithium batteries that are no longer suitable for use but still contain valuable materials such as:

  • Lithium
  • Cobalt
  • Nickel
  • Manganese
  • Copper & Aluminum foils
  • Graphite

What Can Be Recycled from Li-ion Battery Scrap?

ComponentRecyclable?Recovered MaterialUsed For Again
Cathode (LCO/NMC/LFP)✅ YesLithium, Cobalt, NickelNew cathode material
Anode (Graphite)✅ YesGraphiteNew battery anodes
Separator (plastic)❌ NoNon-recyclableUsually incinerated
Electrolyte (liquid)⚠️ PartialOrganic solvents, lithium saltDifficult, some can be neutralized
Copper foil✅ YesCopperElectrical parts, wiring
Aluminum foil✅ YesAluminumFrame, casing, packaging
Battery shell/case✅ YesSteel/Aluminum/PlasticRecycled or reused

What Can’t Be Recycled?

  • Burnt, swollen, or chemically damaged cells
  • Plastic separators
  • Expired electrolyte fluid (in large-scale)
  • BMS (Battery Management System) IC boards (unless e-waste processed separately)

How the Li-ion Battery Recycling Process Works

There are three major recycling methods:

1. Pyrometallurgical Process (Thermal)

  • Burn batteries in high-temperature furnaces (600–1000°C)
  • Recover metals from slag (e.g., cobalt, nickel)
  • Disadvantage: Energy-intensive, releases gases

2. Hydrometallurgical Process (Chemical)

  • Shred batteries
  • Use acid leaching + precipitation
  • Extract lithium, cobalt, nickel with 90%+ purity
  • Eco-friendly & most used

3. Direct Recovery Method

  • Separate components mechanically
  • Restore cathode/anode with minimal chemical usage
  • Used in R&D & pilot plants

Machines Used in Battery Scrap Recycling

Machine NamePurpose
Battery Dismantling Table/StationManually or semi-automatically open packs
Shredder / GranulatorCrush batteries into powder/flakes
Magnetic SeparatorSeparate ferrous metals
Eddy Current SeparatorSeparate non-ferrous (Al, Cu)
Air Classifier / Cyclone DustCollect fine particles
Leaching Reactor TanksChemical leaching of black mass
Filter Press / DryerFilter and dry recovered materials
Metal Precipitation TanksExtract specific metals (Li, Ni, Co)
pH Control System & Effluent PlantNeutralize and treat chemical waste

Environmental Benefits of Li-ion Battery Recycling

Impact AreaBenefits
Waste ManagementPrevents toxic landfill dumping of lithium and cobalt
Resource SavingReduces need for mining rare metals
Energy SavingRecycling uses up to 70% less energy than mining
Air PollutionControlled emissions compared to raw material extraction
Job CreationBuilds green jobs in circular economy sectors

Government Rules for Battery Waste Handling in India (E-Waste 2022)

  • Extended Producer Responsibility (EPR) – Brands must take back old batteries
  • Registered recyclers only can process battery waste
  • Fire-proof packaging required for lithium batteries transport
  • Must maintain data of incoming scrap and outgoing recycled material

Battery Scrap Collection & Storage Tips

  • Store in cool, dry place with fire-resistant bins
  • Sort batteries by chemistry (LFP, NMC, LCO) if possible
  • Use electrically insulated containers
  • Avoid puncturing or short-circuiting cells during transport

Example Business Use Cases

Business TypeDescription
Scrap AggregatorCollect and sell to authorized recyclers
Battery RefurbisherSort cells and reuse good ones in new packs
Recycling PlantFull mechanical + chemical setup for metal extraction
EPR Service ProviderWork with OEMs to meet their legal recycling obligations
